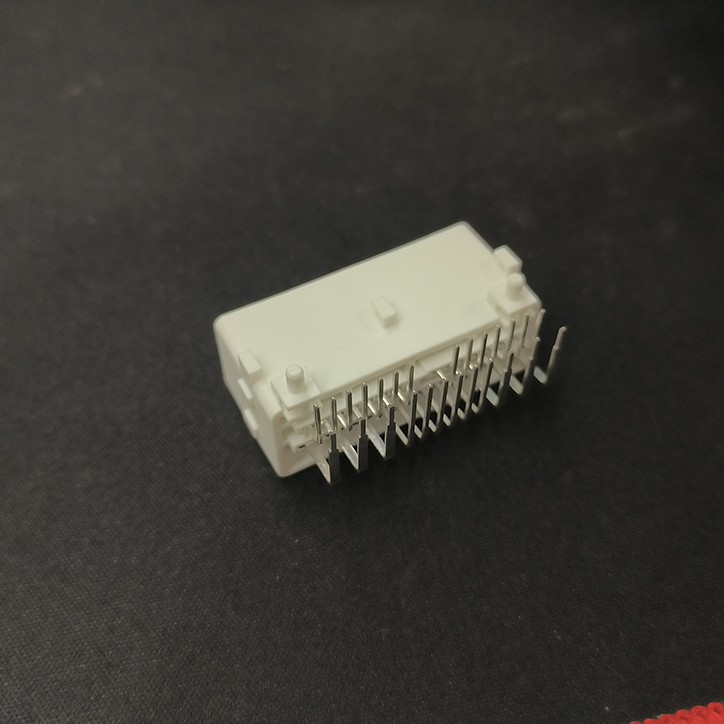

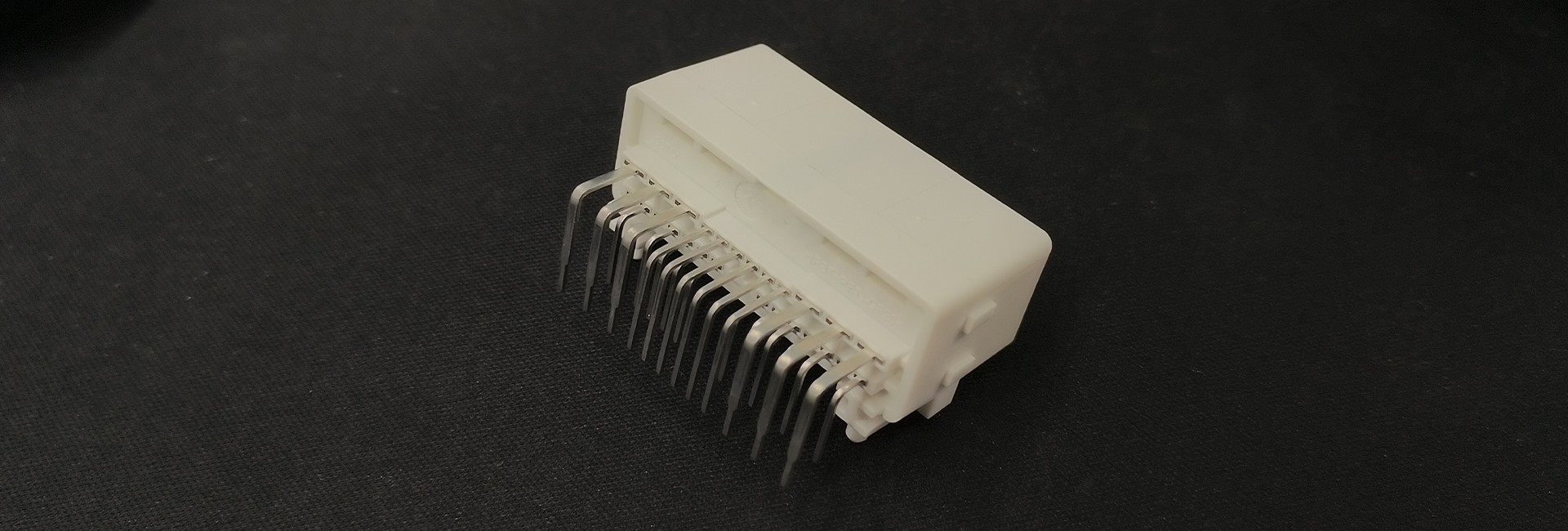

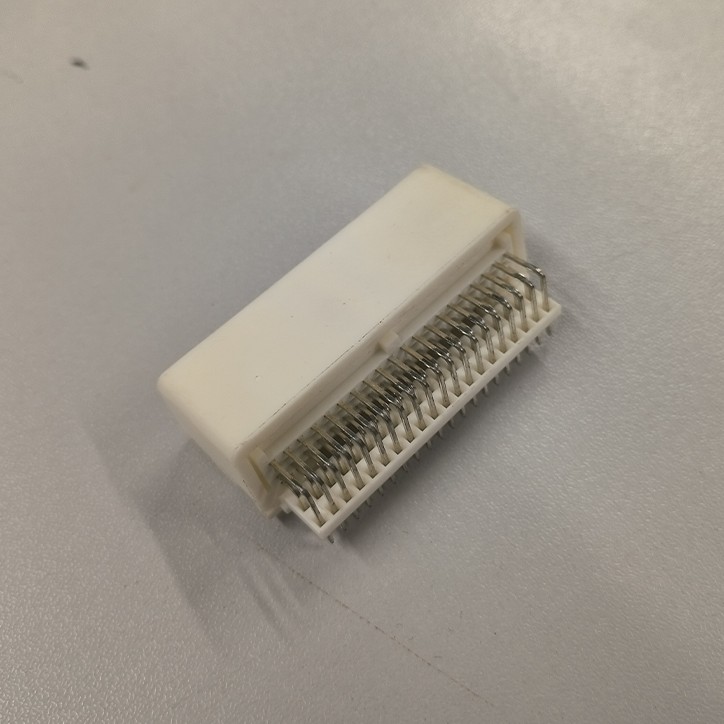

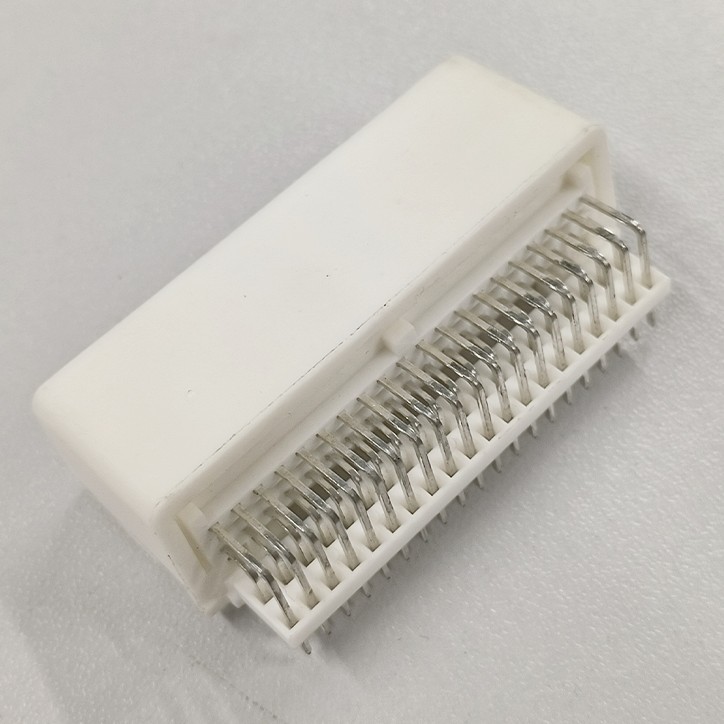

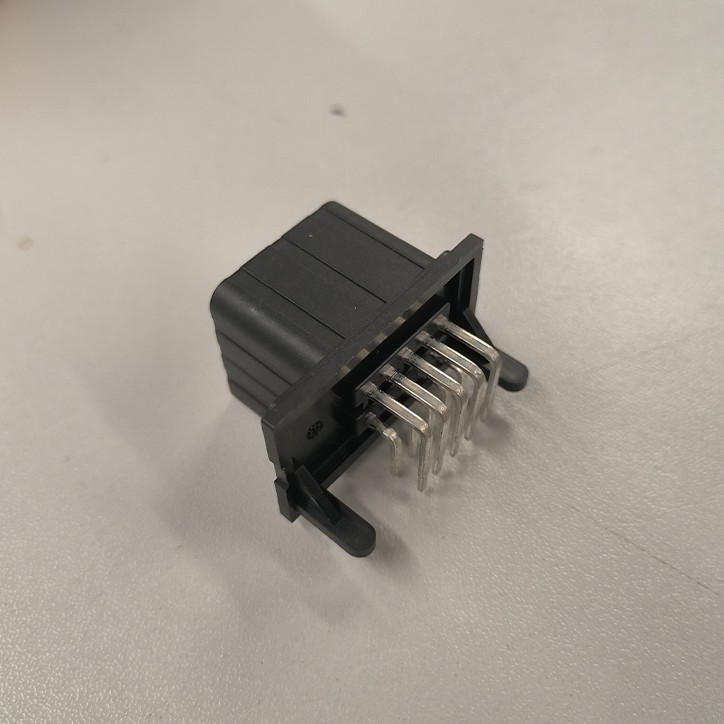

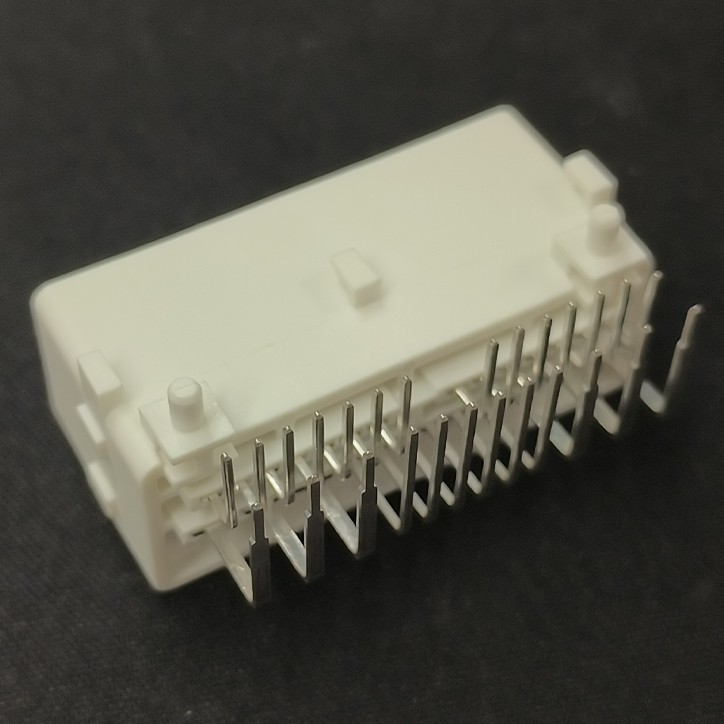

High-Quality Pin Connector for Efficient Electrical Connections in Industrial and Consumer Applications.

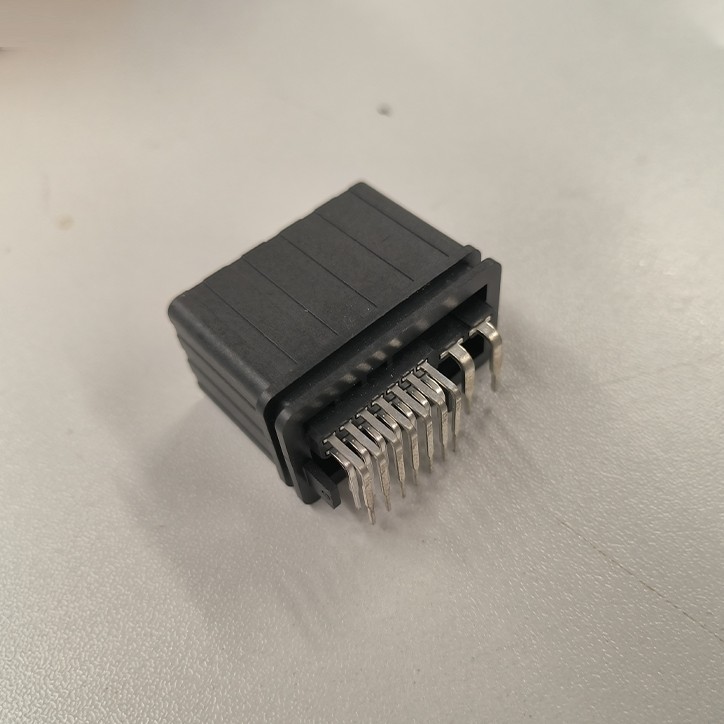

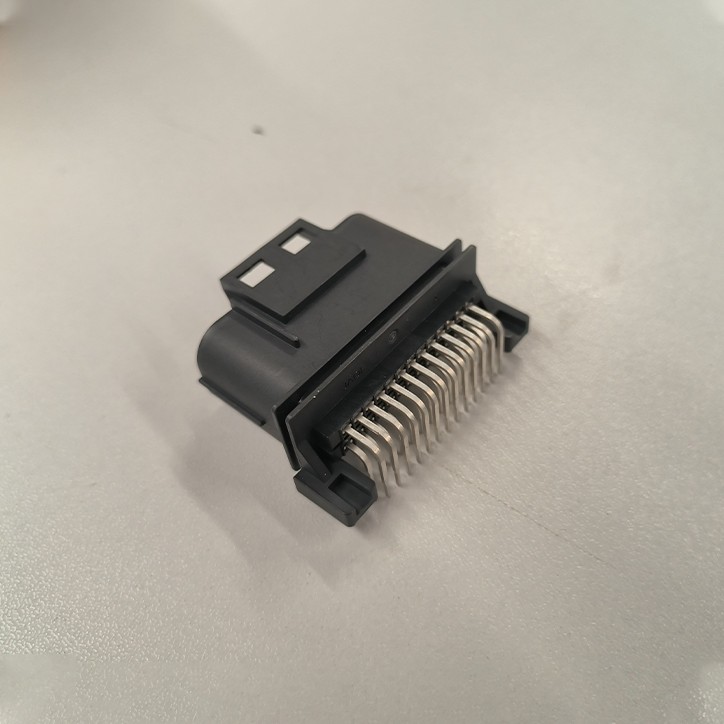

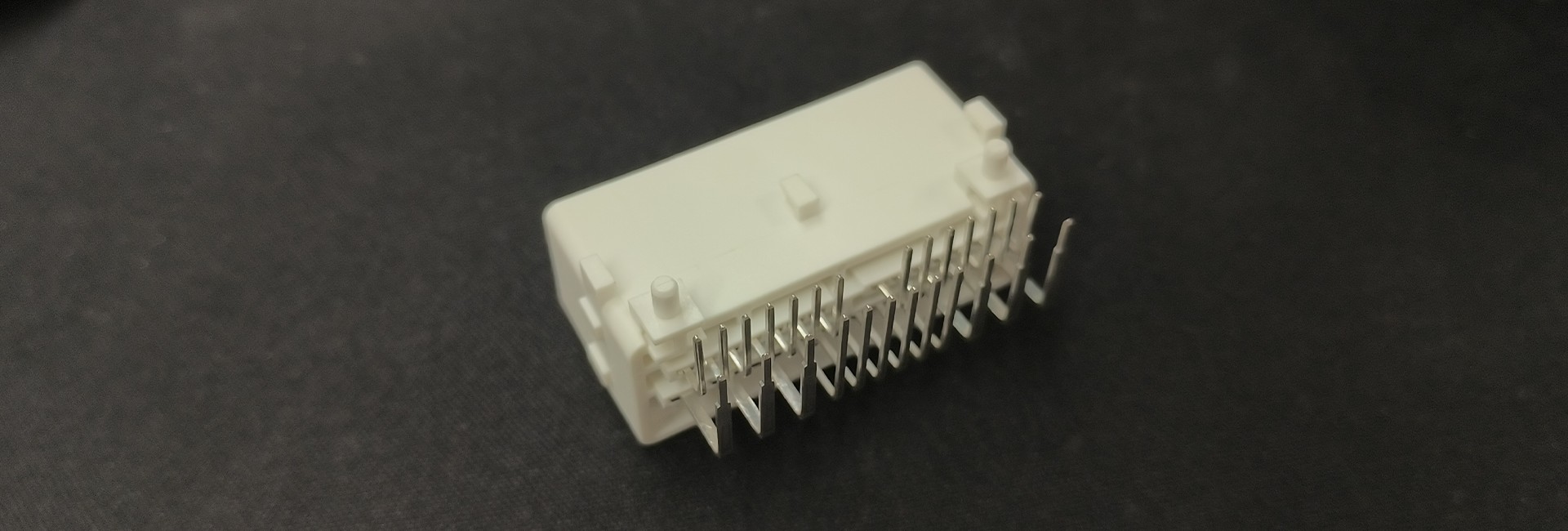

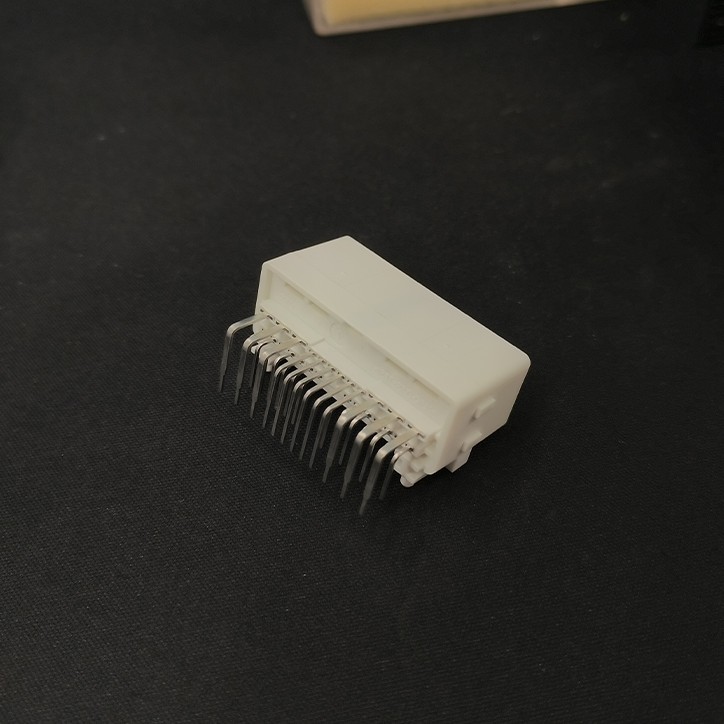

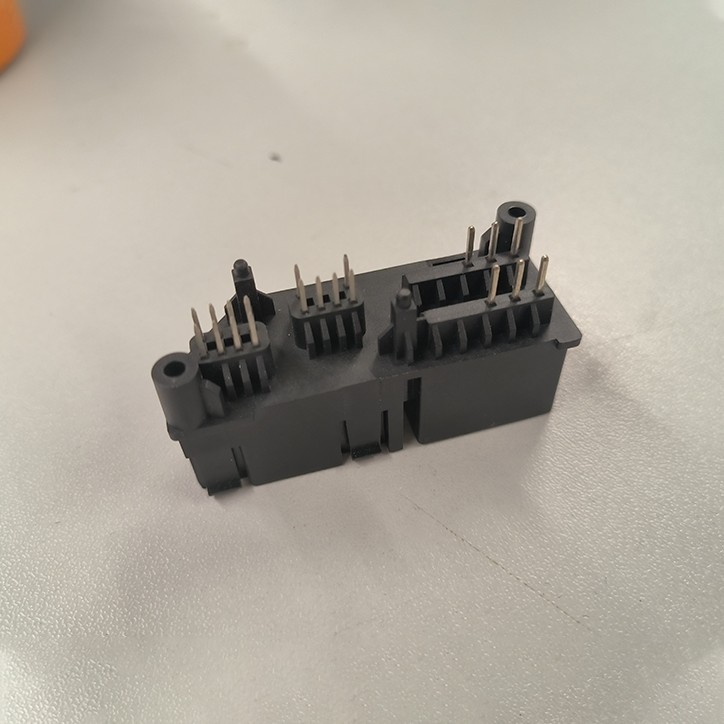

Our IDC Pin Connector is designed for a wide range of applications, providing reliable, easy-to-use connections for wiring systems. It is perfect for industrial automation, consumer electronics, and many other electronic systems that require secure and efficient connections without the need for soldering.
● Usage：Medical imaging systems (ultrasound, CT, X-ray, MRI modules)
Housing is made of high-temperature LCP material and the terminals are gold-plated for superior conductivity and corrosion resistance.
● Usage：Medical Devices
Designed for compact electronic devices requiring high signal reliability and mechanical stability.
● Usage：ECU Integration
Enables efficient data transfer and power delivery for precise control of battery management, motor control, and charging.
The lifespan of a connector typically depends on the usage environment and frequency of use. Generally, high-quality connectors can withstand thousands of insertion and removal cycles under normal conditions.
When selecting a connector, consider the following factors:
• Application environment: temperature, humidity, vibration, etc.
• Electrical requirements: necessary voltage, current, and impedance.
• Size and shape: ensure compatibility with existing equipment.
Installation steps typically include:
• Ensure the power is turned off.
• Align the connector, ensuring the pins on the plug and socket fit correctly.
• Apply even pressure to insert until you hear a “click,” indicating it is locked in place.
If you experience poor contact, try the following:
• Check if the connector is securely inserted.
• Clean the contact surfaces to remove dust and debris.
• Inspect the connector for damage; if damaged, replace it.
Many connectors are designed to be waterproof and weather-resistant, but for outdoor use, it’s best to select connectors specifically designed for such environments, ensuring they meet the required protection ratings.
We provide customization services for connectors, including special sizes, materials, and electrical specifications. Please contact our technical support for more information.
To extend the lifespan of connectors, we recommend regularly checking and cleaning them. Avoid storing them in high-temperature or humid environments, and refrain from excessive pulling on cables during use.
