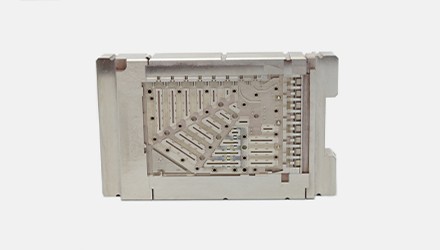

TM017A-14161 Automotive Connector Mold

The Automotive Connector Mold is meticulously engineered for the high-precision manufacturing of automotive connectors. Utilizing state-of-the-art molding technology and high-quality materials, this mold ensures optimal performance and durability in producing connectors that meet the demanding standards of the automotive industry. Its robust design allows for efficient mass production, ensuring consistent quality across all units, which is essential for the reliability of modern vehicles.

APPLICATIONS

Process Combination TypeCertificationCustomizedProduction ProcessInterface Type
Compound DieTS16949, ISO, FDACustomizedInjection MoldingAC/DC
Wire Insulator MaterialFEP / PVC
Process Combination TypeCompound Die
CertificationTS16949, ISO, FDA
CustomizedCustomized
Production ProcessInjection Molding
Interface TypeAC/DC

Product Features

RELATED PRODUCTS

This Might Interest You

● Usage:Industrial Automation

Supports reliable communication between the robot arm and the control system, enabling efficient operation of automation tasks.

● Usage:Emission Control Systems

High-performance connector designed to enhance the efficiency of emission reduction systems, ensuring reliable operation and compliance with environmental standards.

● Usage:Medical Equipment System

High-reliability wiring solution with precise connections, ensuring optimal performance and safety in medical devices.

FREQUENTLY ASKED QUESTIONS

Your Question Is Answered

The lifespan of a connector typically depends on the usage environment and frequency of use. Generally, high-quality connectors can withstand thousands of insertion and removal cycles under normal conditions.

When selecting a connector, consider the following factors:

• Application environment: temperature, humidity, vibration, etc.
• Electrical requirements: necessary voltage, current, and impedance.
• Size and shape: ensure compatibility with existing equipment.

Installation steps typically include:

• Ensure the power is turned off.
• Align the connector, ensuring the pins on the plug and socket fit correctly.
• Apply even pressure to insert until you hear a “click,” indicating it is locked in place.

If you experience poor contact, try the following:

• Check if the connector is securely inserted.
• Clean the contact surfaces to remove dust and debris.
• Inspect the connector for damage; if damaged, replace it.

Many connectors are designed to be waterproof and weather-resistant, but for outdoor use, it’s best to select connectors specifically designed for such environments, ensuring they meet the required protection ratings.

We provide customization services for connectors, including special sizes, materials, and electrical specifications. Please contact our technical support for more information.

To extend the lifespan of connectors, we recommend regularly checking and cleaning them. Avoid storing them in high-temperature or humid environments, and refrain from excessive pulling on cables during use.
