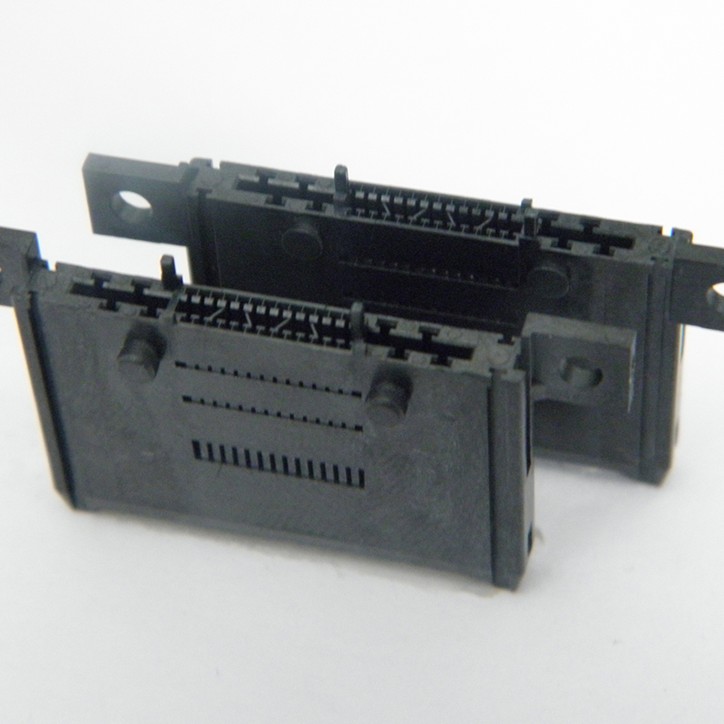

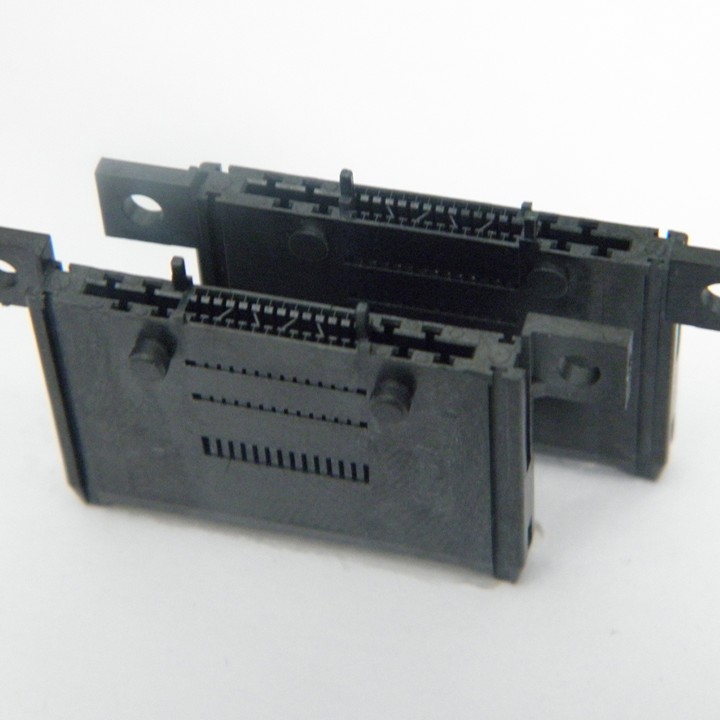

Plastic Connector Housing

This is a high-performance plastic connector housing manufactured via precision injection molding, suitable for multi-pin connections in electronics, industrial automation, communication equipment, automotive systems, etc. Featuring compact structure, multiple slot rows, and accurate terminal positioning. Designed to work with metal or conductive pins and suitable for mixed signal and power interfaces.

APPLICATIONS

Material OptionsStructural DesignEnvironmental ResistanceStandards Compliance
PA66, PBT, LCP; UL94 V-0 compliantMulti-row slots; precise terminals; optional pillars/guidesIP67 optional; -40 °C to +85 °C; UV/ageing resistantRoHS/REACH; UL materials; supports D-Sub, LC Duplex, industrial plugs
Wire Insulator MaterialFEP / PVC
Material OptionsPA66, PBT, LCP; UL94 V-0 compliant
Structural DesignMulti-row slots; precise terminals; optional pillars/guides
Environmental ResistanceIP67 optional; -40 °C to +85 °C; UV/ageing resistant
Standards ComplianceRoHS/REACH; UL materials; supports D-Sub, LC Duplex, industrial plugs

Customizable Options

Product Details

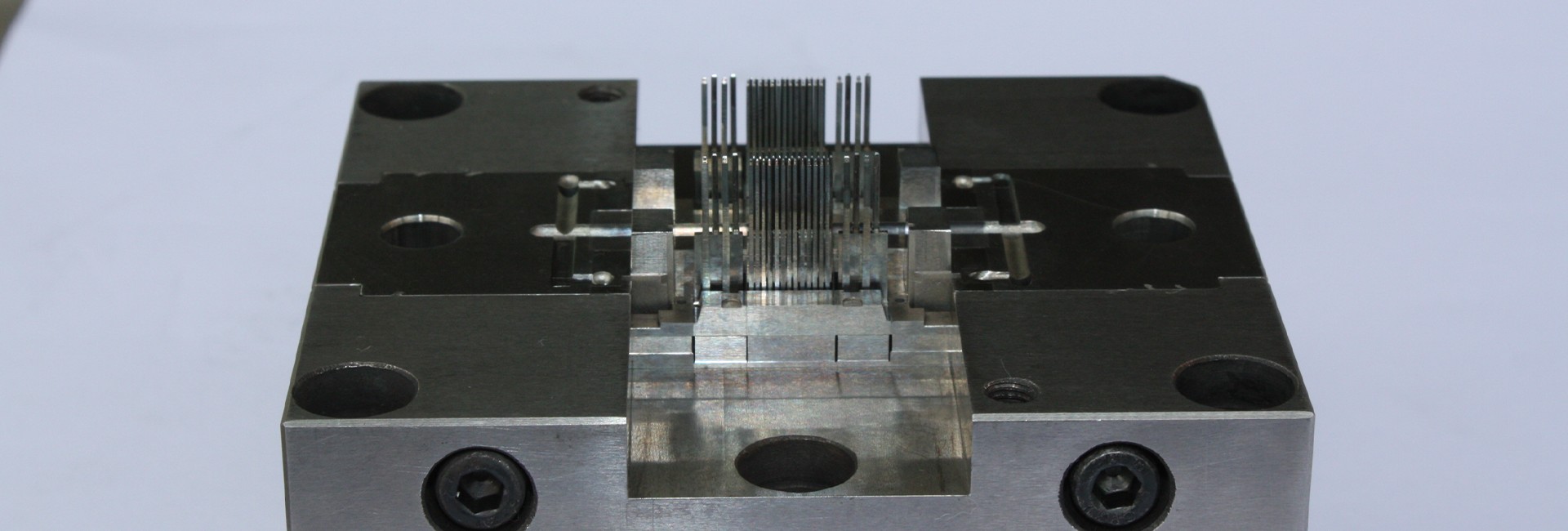

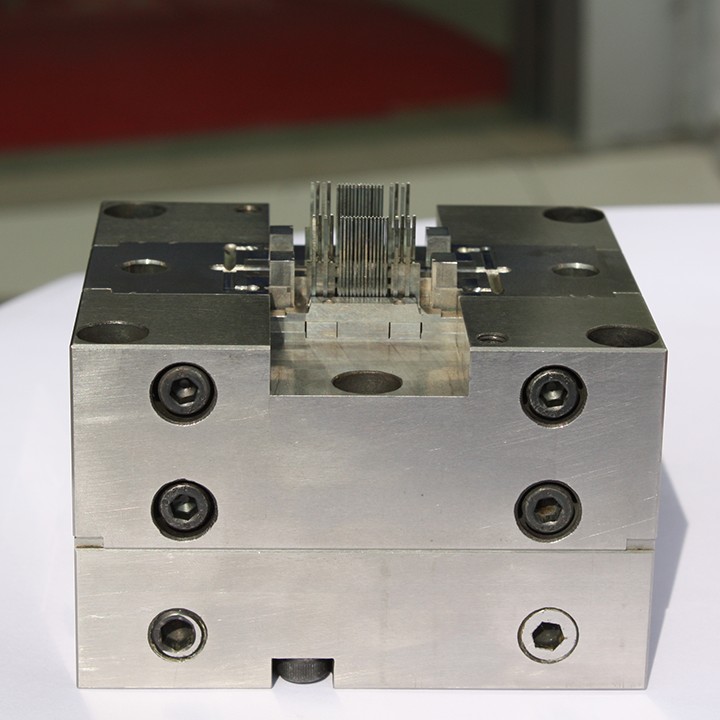

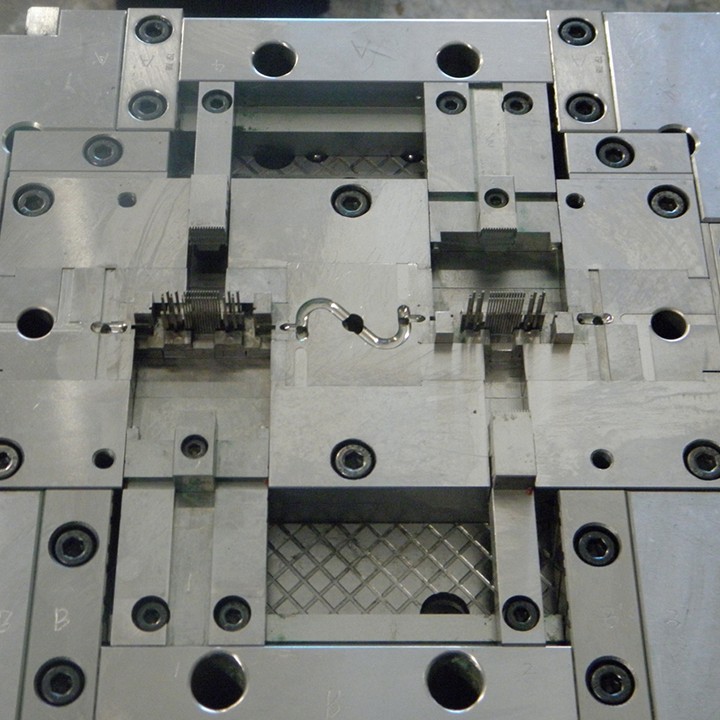

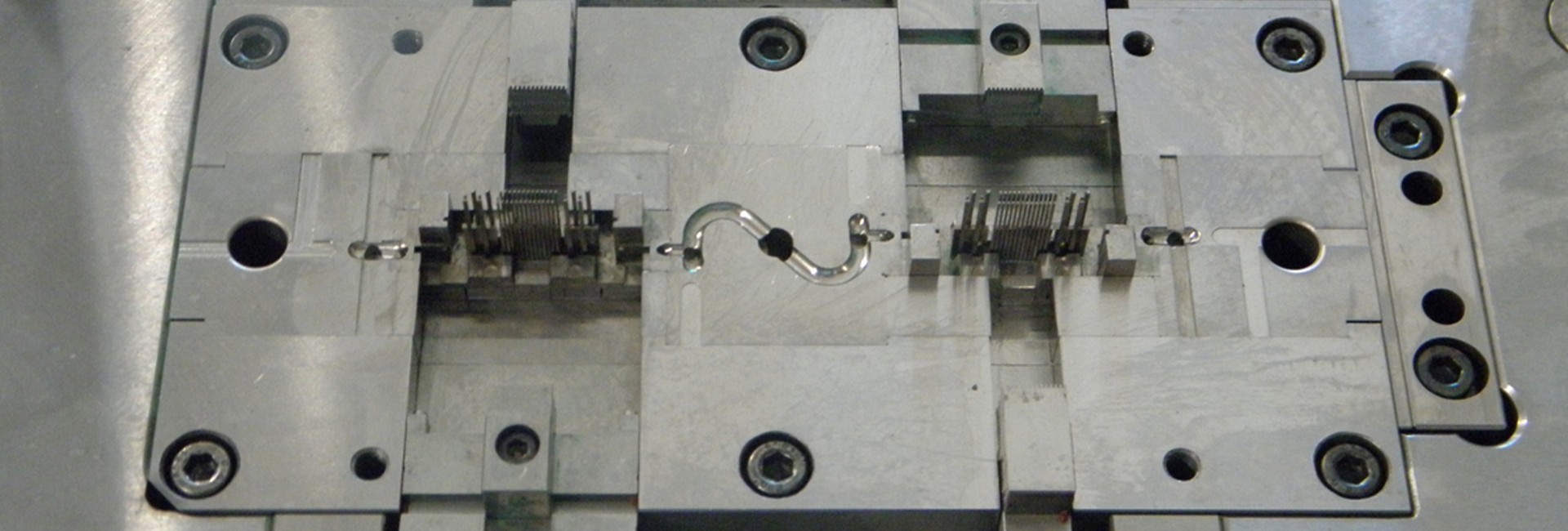

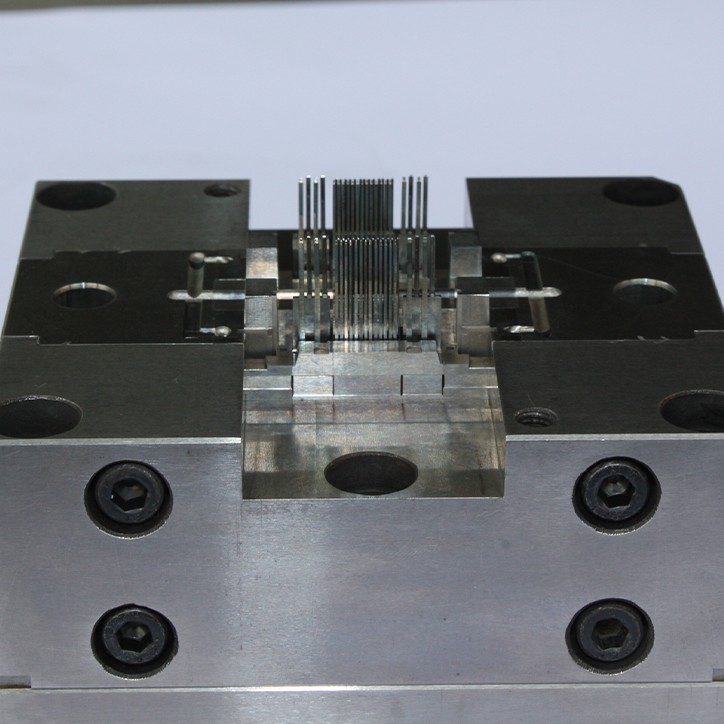

Mold Development Process

One-stop service: mold design → manufacturing → injection molding → assembly

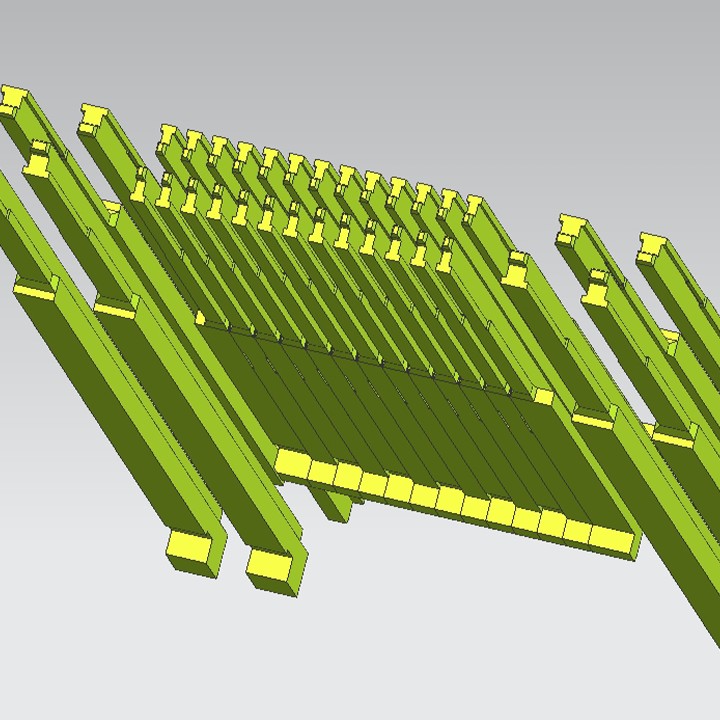

3D design (UG/ProE/CATIA)

Mold making (CNC, EDM, polishing)

T1 sample and testing

Final optimization and shipment

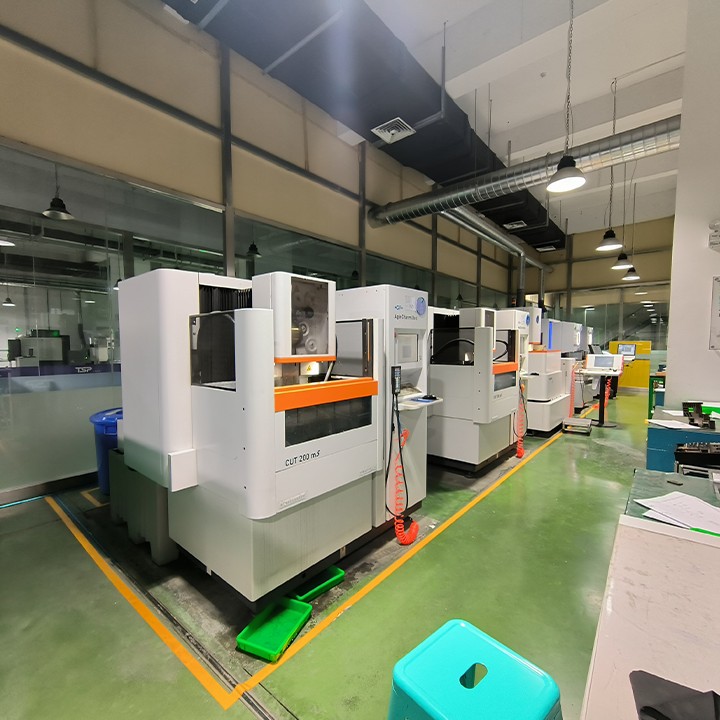

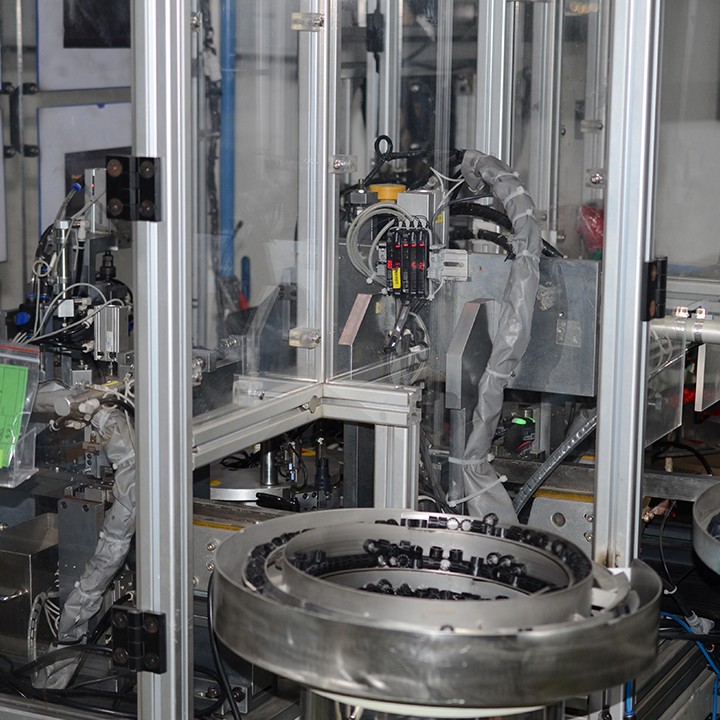

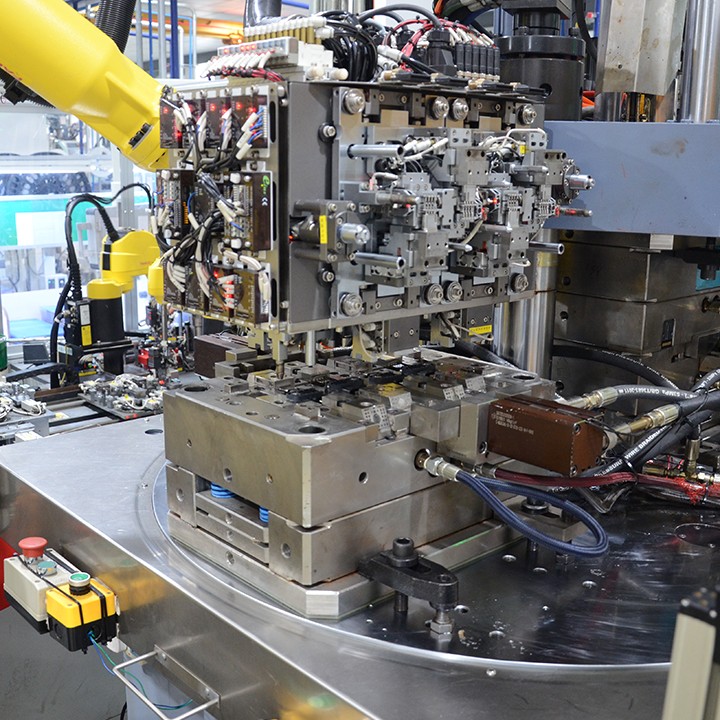

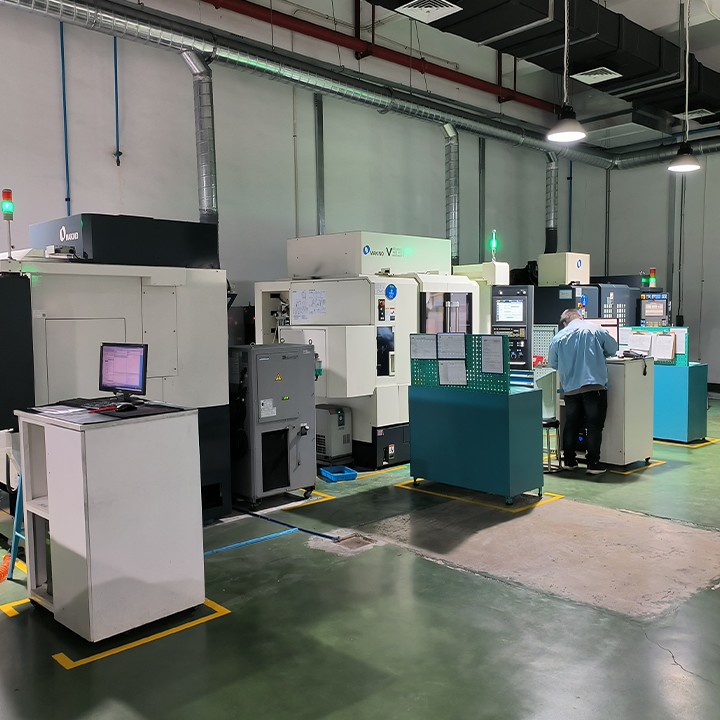

TSP Processing Workshop

Why Choose Us

RELATED PRODUCTS

This Might Interest You

● Usage:Automotive Wiring Harnesses

Manufactured using high-precision injection molds to ensure each cavity is dimensionally consistent and structurally stable.

● Usage:Fuse and Relay Box Housing

It is a high-precision, multi-cavity mold designed for manufacturing complex automotive electrical modules and high-strength structural parts.

● Usage:Electrical connection

Designed for durability, this housing features one round and eight flat holes, ensuring secure, reliable connections.

FREQUENTLY ASKED QUESTIONS

Your Question Is Answered

The lifespan of a connector typically depends on the usage environment and frequency of use. Generally, high-quality connectors can withstand thousands of insertion and removal cycles under normal conditions.

When selecting a connector, consider the following factors:

• Application environment: temperature, humidity, vibration, etc.
• Electrical requirements: necessary voltage, current, and impedance.
• Size and shape: ensure compatibility with existing equipment.

Installation steps typically include:

• Ensure the power is turned off.
• Align the connector, ensuring the pins on the plug and socket fit correctly.
• Apply even pressure to insert until you hear a “click,” indicating it is locked in place.

If you experience poor contact, try the following:

• Check if the connector is securely inserted.
• Clean the contact surfaces to remove dust and debris.
• Inspect the connector for damage; if damaged, replace it.

Many connectors are designed to be waterproof and weather-resistant, but for outdoor use, it’s best to select connectors specifically designed for such environments, ensuring they meet the required protection ratings.

We provide customization services for connectors, including special sizes, materials, and electrical specifications. Please contact our technical support for more information.

To extend the lifespan of connectors, we recommend regularly checking and cleaning them. Avoid storing them in high-temperature or humid environments, and refrain from excessive pulling on cables during use.
