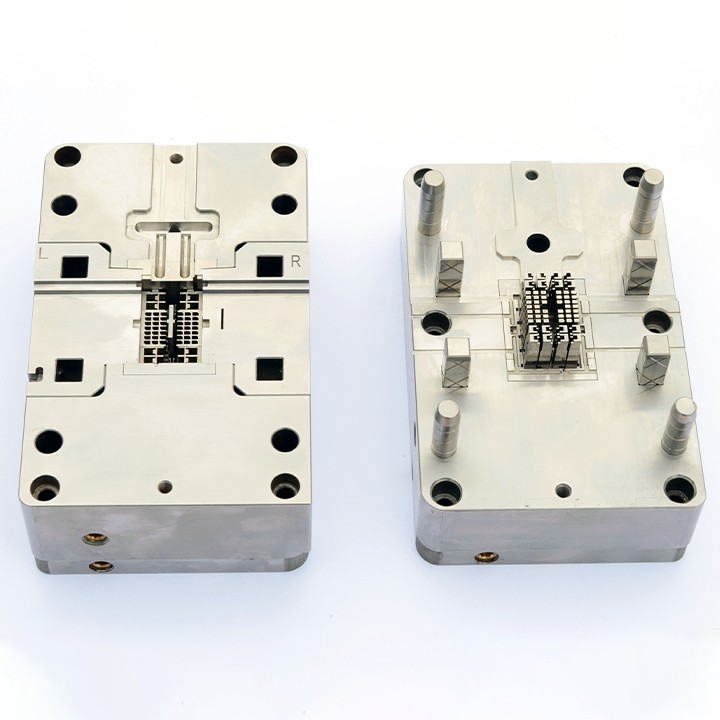

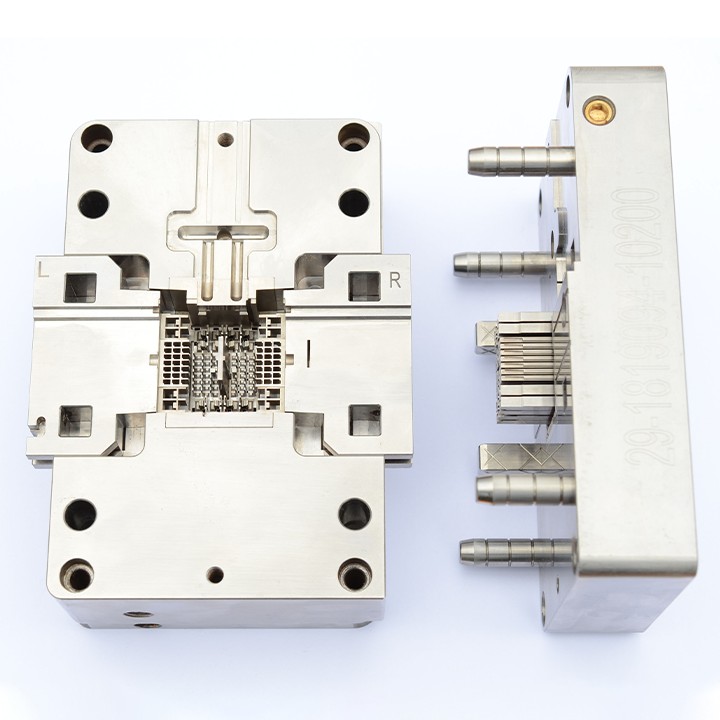

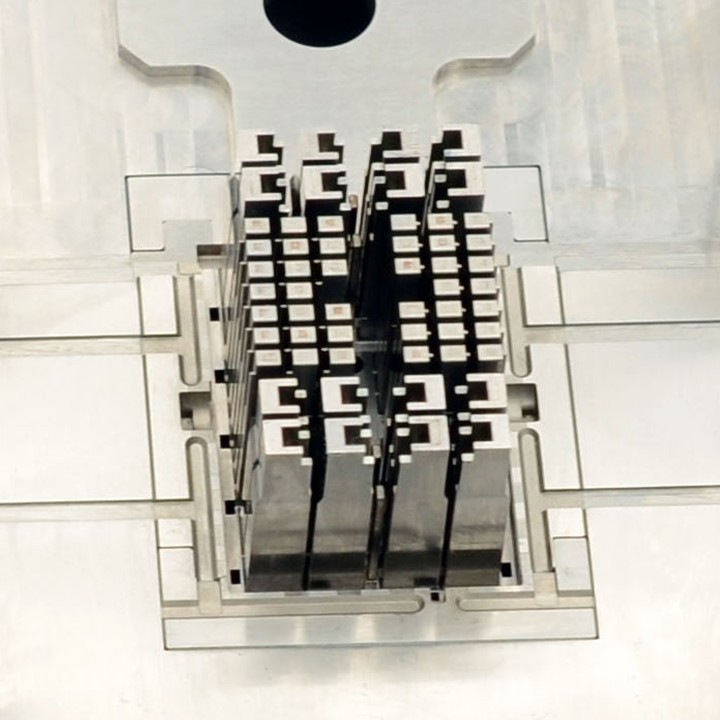

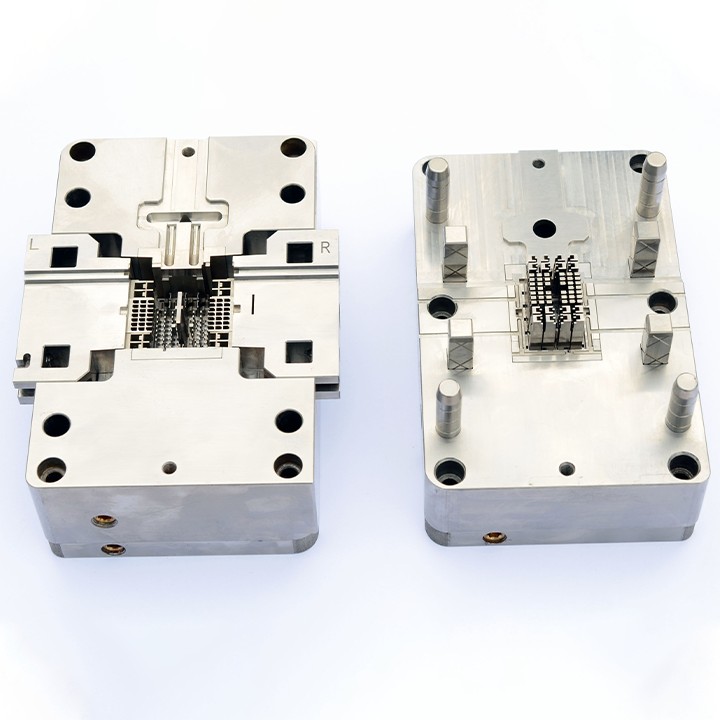

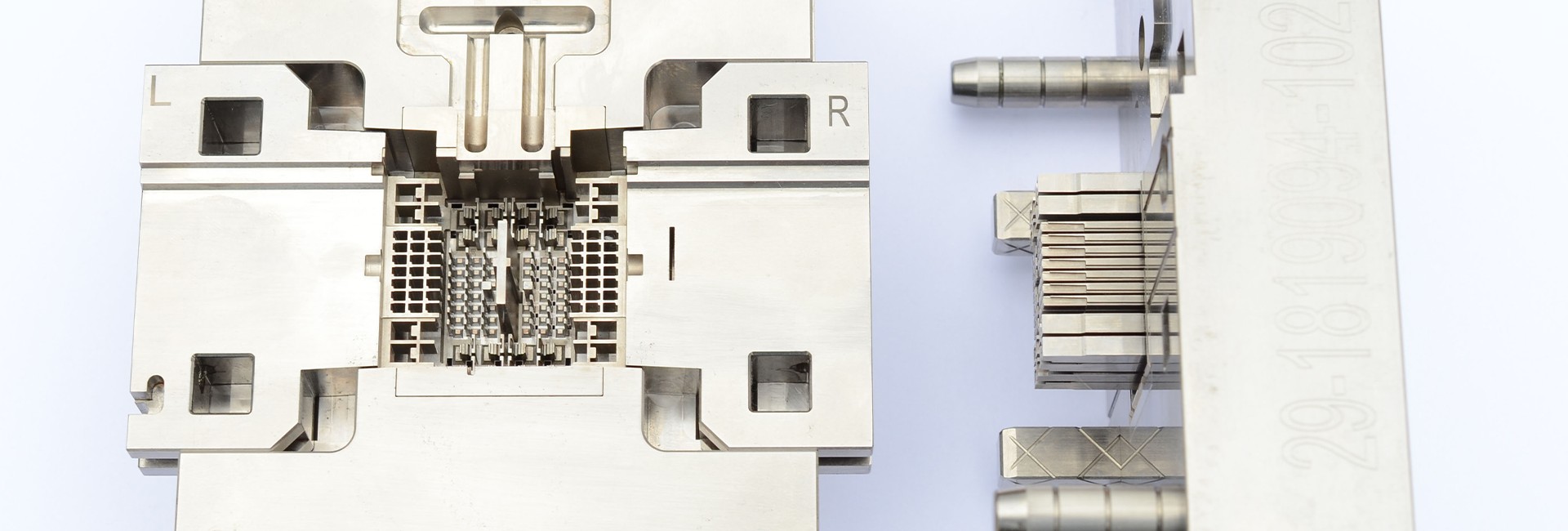

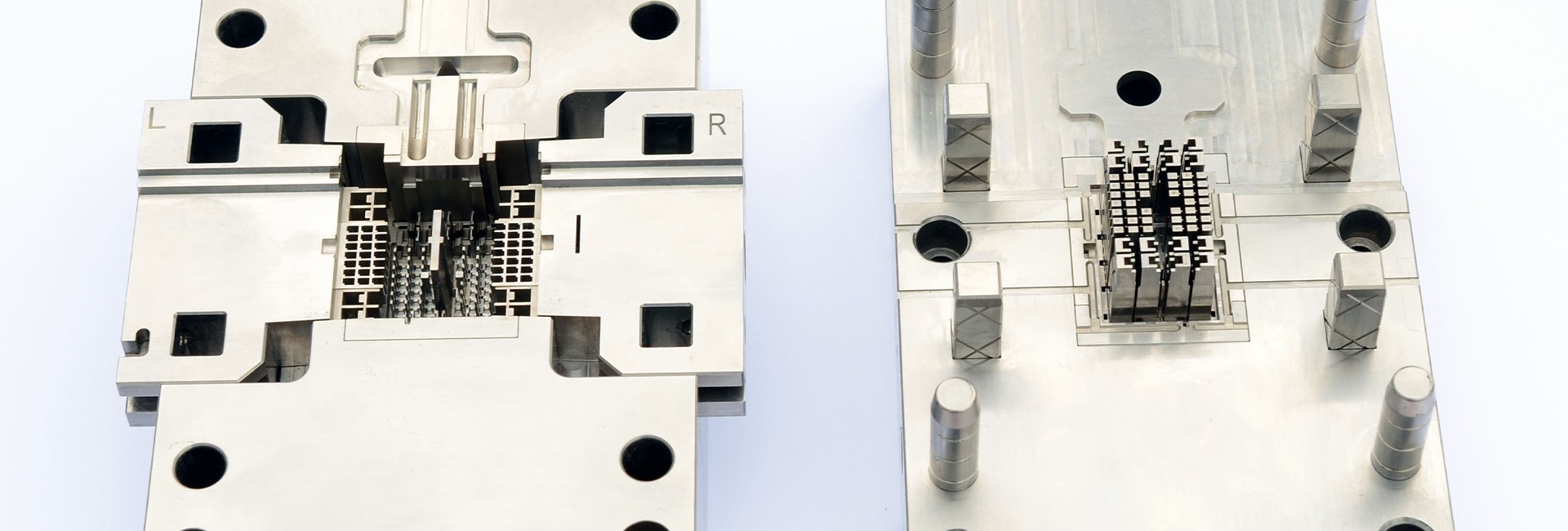

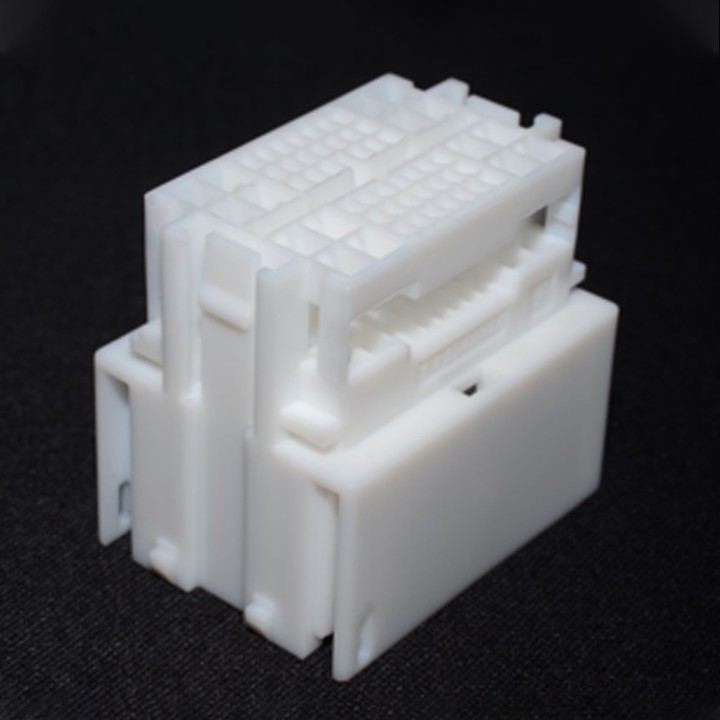

Manufactured using high-precision injection molds to ensure each cavity is dimensionally consistent and structurally stable.

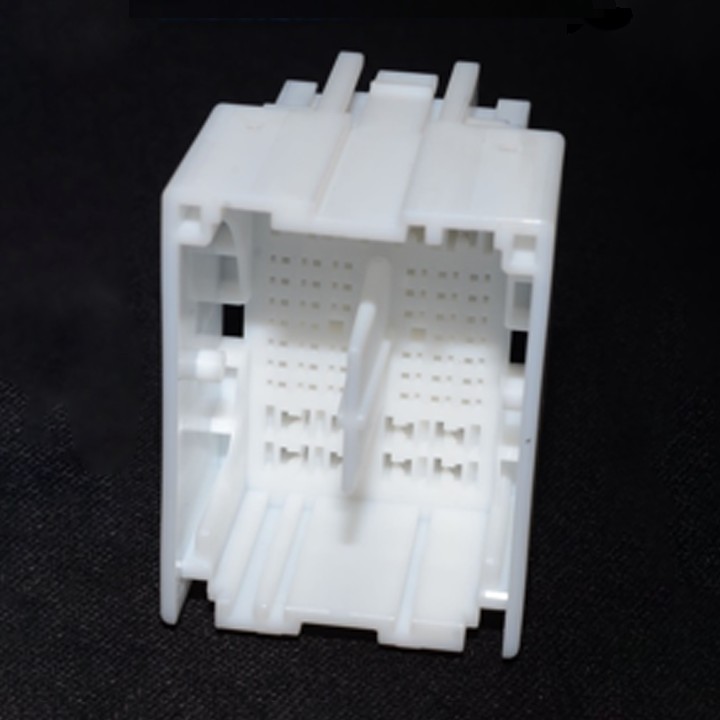

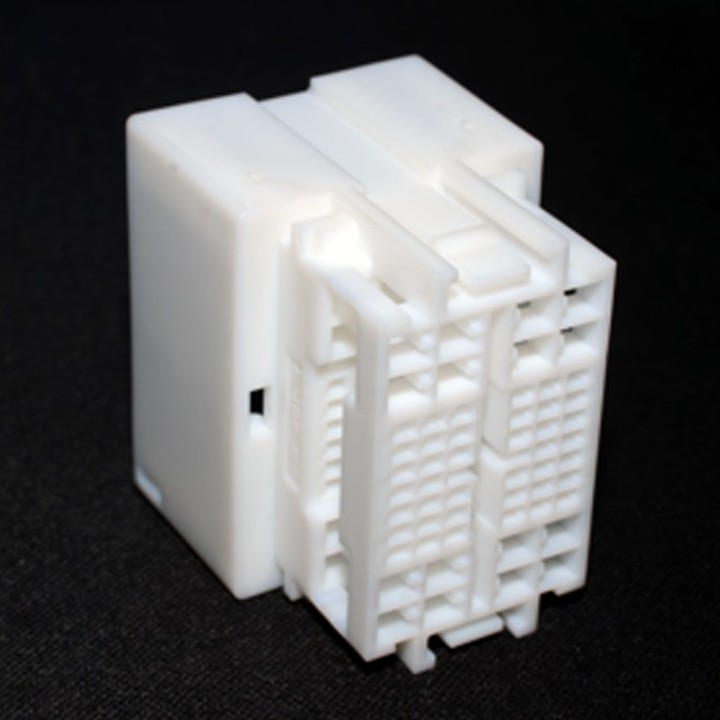

Designed to accommodate metal terminals, this housing is widely used in automotive wiring harnesses, home appliance control modules, and industrial equipment.
Customizable in terms of number of pin positions, color, locking mechanism, and material according to customer requirements.
| Material | Pin Positions | Pitch | Operating Temp |
|---|---|---|---|
| PBT (customizable) | 10, 16, 20, etc. (per customer design) | 1.5 mm / 2.0 mm (customizable) | –40 ℃ ~ +125 ℃ |
| Lock Type | Compatible Terminals | Finish | Flammability Rating |
|---|---|---|---|
| Standard latch / CPA+TPA anti-release latch | Multiple crimp terminal platforms | Injection molded, smooth surface, no burrs | UL94 V-0 / V-2 (customizable) |
| Wire Insulator Material | FEP / PVC |
|---|---|
| Material | PBT (customizable) |
| Pin Positions | 10, 16, 20, etc. (per customer design) |
| Pitch | 1.5 mm / 2.0 mm (customizable) |
| Operating Temp | –40 ℃ ~ +125 ℃ |
| Lock Type | Standard latch / CPA+TPA anti-release latch |
| Compatible Terminals | Multiple crimp terminal platforms |
| Finish | Injection molded, smooth surface, no burrs |
| Flammability Rating | UL94 V-0 / V-2 (customizable) |
One-stop service: mold design → manufacturing → injection molding → assembly
3D design (UG/ProE/CATIA)

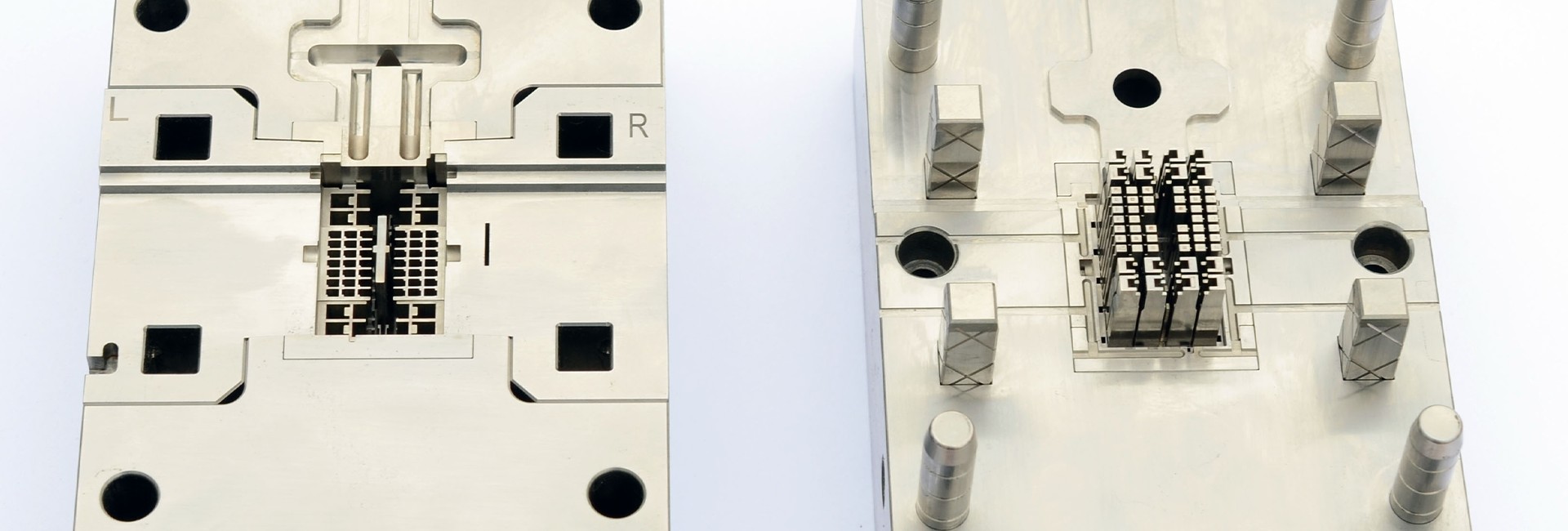

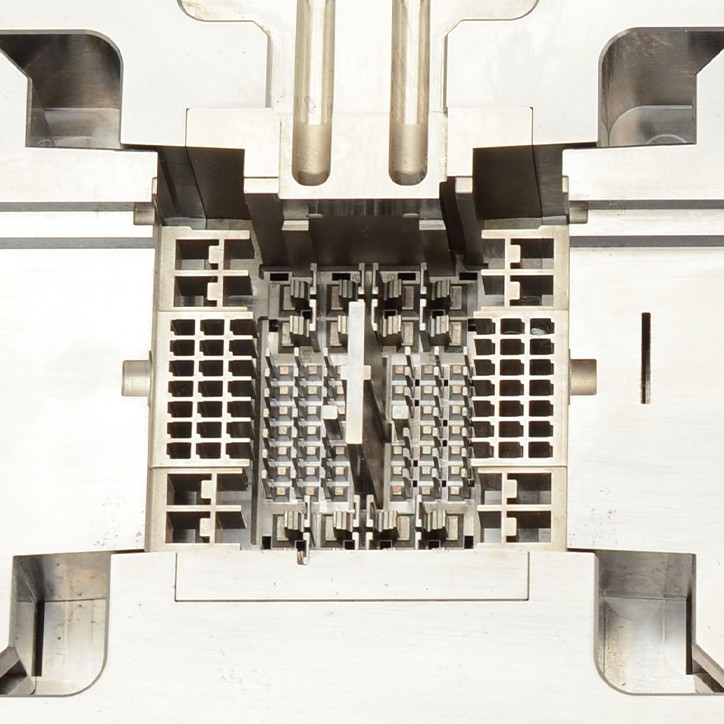

Mold making (CNC, EDM, polishing)
T1 sample and testing
Final optimization and shipment
● Usage：Medical Injection Molding Manufacturing
Provide end-to-end solutions in the field of injection molding—from product planning, mold design and manufacturing, to molding processes, auxiliary equipment, and full-scale production.
● Usage：Connector manufacturing
Designed for high-precision production of durable automotive connectors, ensuring reliable electrical connections.
● Usage：Pressure Measurement
Utilizing advanced technology, this sensor delivers accurate pressure readings for automotive, medical, and industrial applications.
The lifespan of a connector typically depends on the usage environment and frequency of use. Generally, high-quality connectors can withstand thousands of insertion and removal cycles under normal conditions.
When selecting a connector, consider the following factors:
• Application environment: temperature, humidity, vibration, etc.
• Electrical requirements: necessary voltage, current, and impedance.
• Size and shape: ensure compatibility with existing equipment.
Installation steps typically include:
• Ensure the power is turned off.
• Align the connector, ensuring the pins on the plug and socket fit correctly.
• Apply even pressure to insert until you hear a “click,” indicating it is locked in place.
If you experience poor contact, try the following:
• Check if the connector is securely inserted.
• Clean the contact surfaces to remove dust and debris.
• Inspect the connector for damage; if damaged, replace it.
Many connectors are designed to be waterproof and weather-resistant, but for outdoor use, it’s best to select connectors specifically designed for such environments, ensuring they meet the required protection ratings.
We provide customization services for connectors, including special sizes, materials, and electrical specifications. Please contact our technical support for more information.
To extend the lifespan of connectors, we recommend regularly checking and cleaning them. Avoid storing them in high-temperature or humid environments, and refrain from excessive pulling on cables during use.
